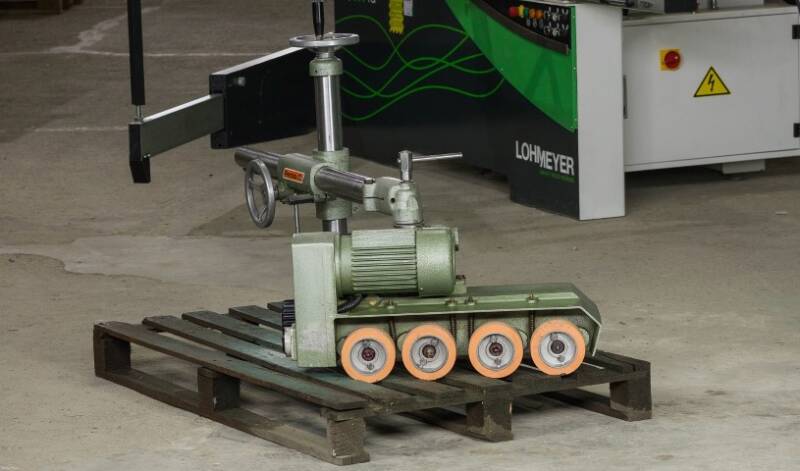

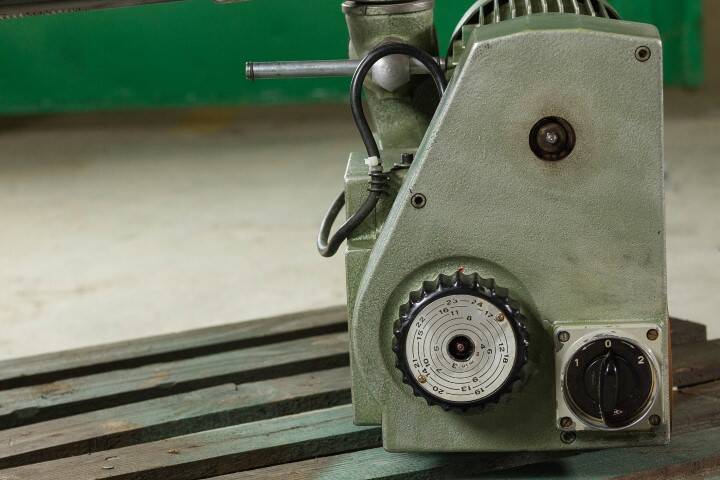

Mechanical feed device, second hand

Combined machine, circular with milling machine - BAUERLE - Italy, code sh 1373


Features:
Start button;
Speed in 2 reversible milling steps;
Bottom circular evacuation hood;
Height adjustment of the canvas;
Milling axle locking system;
Cast iron guide rail 755 x 115 mm;
Angle cutter.
Fixed mass dimensions L / l: 1080/1060 mm

1: Circular
Maximum canvas diameter: 350 mm
Blade diameter: 30 mm
Circular canvas speed: 4800 rpm
Main power: 7.5 kW
Cutting width to the right: 600 mm


2: Vertical cutter
Axle diameter: 30 mm
Useful shaft height: 180 mm
Max milling tool diameter: 250 mm
Engine power: 5.5 kW
Dimensions: 1300/1300/1100 mm
Weight: approx. 600 kg
Condition: reconditioned
Very good working condition

View - Saw - STAR 700 Italy, sh 1280


Technical details:
Massive cast iron construction;
Working height 350 mm easy to adjust;
Tape width: 10 - 40 mm;
Shield for protection of the cloth;
Guide rail 600/130 mm;
90 mm lower exhaust hood;
Angled working table at angle 30-0-30 degrees;
Emergency stop button;
Working dimension L / l: 350 mm
Table size: 995/690 mm
Length of ribbon canvas: 5040 mm
Tape width: 10 - 40 mm
Engine power: 3 KW
Working speeds: 2800 rpm
Weight: 300 kg
Fifth wheel diameter: 700 mm
Dimensions: 1250 x 800 x 2200 mm
Condition: reconditioned
Very good working condition

max. saw blade diameter 305mm rotation speed of main blade 4500/5500U/min scoring saw blade Ø / hole 120mm/20mm rotation speed scoring saw blade 8000U/min max. cutting height 90°/45° 80/55mm saw blade tilt 0°-45° max. cutting length 3450mm max. cutting width at parallel fence 1150mm table height 850mm working table 980x550mm table extensions 500x505mm, 790x505mm sliding table 3200x375mm sliding table extensions 1110x610mm Ø dust collector inlet 100mm engine power S1 (100%) / S6 4,0kW/5,6kW engine power of scoring unit (S1/S6) 0,75kW/1,05kW voltage 400V net weight 700kg gross weight ca. 780kg machine dimensions 3350x3200mm packaging dimensions 2150x1050x980mm 3500x450x310mm

VEB – 410
