Refurbished line of production for fruit and vegetables wooden boxes

WE ARE SELLING REFURBISHED LINE OF PRODUCTION FOR FRUIT AND VEGETABLES WOODEN BOXES
OUTPUT 1100 - 11300 BOXES/H
M.268 BLOCK CUTTER FOR MULTIPLE BLOCKS (NEW MACHINE)
Semi-automatic machine to cut blocks to size for fruit and vegetable boxes. Complete with:Surface for placing handles
Blade group under the work plan
Carriage with alternating movement with geared motor to move handles during the cutting stage (Note: this operation requires manual help).
Technical specifications:
Length of handles 500 - 3500 mm
Section of handles 28x28 38x38 mm
Length of blocks 60 - 300 mm
Suction holes n. 1, diameter 150 mm
Power rating 3 kW
Circular blade diameter 300 mm; hole 50 mm: Z no 72
M.109 SECTIONING MACHINE AND FEEDER
Automatic sectioning machine and corner feeder into the automatic stitching machine M.126, complete with:
1 belt conveyor to feed blocks into sectioning area, with press and metering cylinder
1 conveyor with chains and dogs to feed blocks and successively discharge cornersinto the stitching machine, controlled by 0,95 kW self-braking motor
Moving cam with hand wheel adjustment to change the position of abandonment of the corner according to the length of the corners
2 corners guides with adjustable length to connect to the stitching machine;
Blade motor 7,5 kW
1 circular blade for longitudinal sectioning of blocks:
Electrical panel with control equipment.
Machine complete overhauled
After-sales in waranty period: 6 months
Technical specifications:
Section of strips ` 28x28 -38x38 mm
Lengths of blocks 60 -300 mm
Cuts per minute 60
Suction holes n. 1, diameter 150 mm
Power rating 8,50 kW
Compressed air consumption 50 Nl/minute
Circular blade Diameter 300 mm; Hole 70 mm, n.of Z 48
M.109 SECTIONING MACHINE AND FEEDER
Automatic sectioning machine and corner feeder into the automatic stitching machine , complete with:1 belt conveyor to feed blocks into sectioning area, with press and metering cylinder
1 conveyor with chains and dogs to feed blocks and successively discharge corners into the stitching machine, controlled by 0,95 kW self-braking motor
Moving cam with hand wheel adjustment to change the position of abandonment of the corner according to the length of the corners
2 corners guides with adjustable length to connect to the stitching machine;
Blade motor 7,5 kW
1 circular blade for longitudinal sectioning of blocks:
Electrical panel with control equipment.

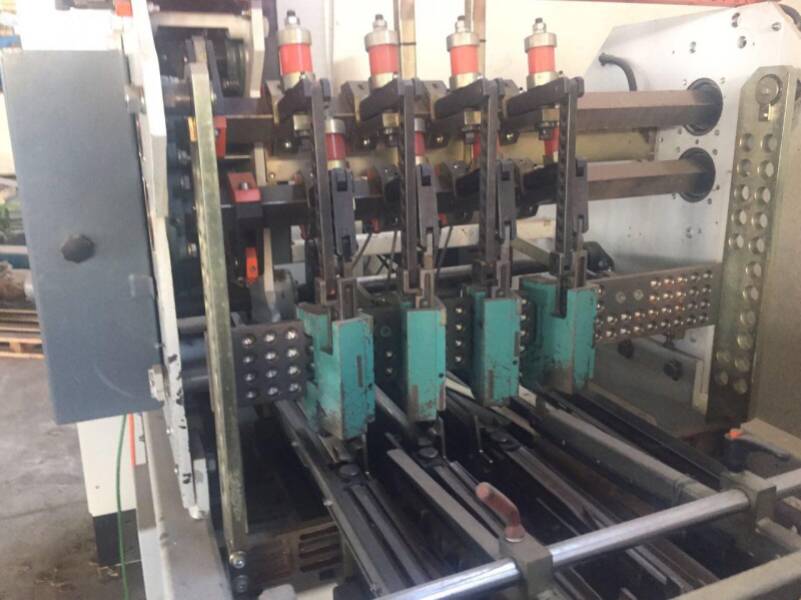

M.126 STITCHING MACHINE FOR BOX FRONT SIDES
Stitching machine for the box front sides of fruit and vegetable boxes with one or more small boards, consisting of:
Frame bearing 2 stitching box front sides, operating by brushless motor
Head ascillation with hand wheel adjustment (with stitching heads moving)
2 small boards loaders M.250
Chain conveyor and dogs, controlled by inverter controlled geared motor
Dogs for stitching the plateaux (box front sides with one small board)
Cabinet with electrical and electronic equipment
Programme drum (for 3 small boards)
Dogs for 2 boards stitching head
Dogs for 3 boards stitching head
Unwinding arm for drums and adjustable unwinding
Machine connected to blocki sectioning machine M.207
Stitch 7 mm - diameter wire 1,20 mm - oblique cut - feeding 44 mm Dogs interval 300 mm
Maximum front side height 250 m
Front side length min. 240 mm -max.400 mm
M.126 STITCHING MACHINE FOR BOX FRONT SIDES
Stitching machine for the box front sides of fruit and vegetable boxes with one or more small boards, consisting of:
Frame bearing 2 stitching box front sides, operating by brushless motor
Head ascillation with hand wheel adjustment (with stitching heads moving)
2 small boards loaders M.250
Chain conveyor and dogs, controlled by inverter controlled geared motor
Dogs for stitching the plateaux (box front sides with one small board)
Cabinet with electrical and electronic equipment
Programme drum (for 3 small boards)
Dogs for 2 boards stitching head
Dogs for 3 boards stitching head
Unwinding arm for drums and adjustable unwinding
Machine connected to blocki sectioning machine M.207
Stitch 7 mm -diameter wire 1,20 mm - oblique cut - feeding 44 mmDogs interval 300 mm
Maximum front side height 250 m
Front side length min. 240 mm - max.400 mm
I. M.125 STITCHING MACHINE FOR FRAMES M.125 Vr.2
Stitching machine for fruit and vegetable boxes with one or more boards,complete with brushless motor, consisting of:
Frame bearing 2 stitching heads
1 small boards loader M.250
Chain carriage and dogs controlled by geared motor wit self-braking motor
Dogs for stitching plateau
Cabinet containing electrical and electronic equipment
Programme drum for 3 boards
Dogs for two board stitching head
Dogs for three board stitching head
Unwinding arm for drums and Adjustable unwinding
Machine for plateaux only.
Complete with:
Series of dogs to stitch a front sides with 2 small boards (10 pairs + 1 spare)
Series of dogs to stitch a front sides with 3 small boards (10 pairs + 1 spare)
Control drum programmed to stitch a front side with 2 small boards
Control drum programmed to stitch a front side with 3 small boards
Complete slats loader group
II. M.125 STITCHING MACHINE FOR FRAMES
Stitching machine for fruit and vegetable boxes with one or more boards,complete with brushless motor, consisting of:
Frame bearing 2 stitching heads
1 small boards loader M.250
Chain carriage and dogs controlled by geared motor wit self-braking motor
Dogs for stitching plateau
Cabinet containing electrical and electronic equipment
Programme drum for 3 boards
Dogs for two board stitching head
Dogs for three board stitching head
Unwinding arm for drums and Adjustable unwinding
Machine for plateaux only.
Complete with:
Series of dogs to stitch a front sides with 2 small boards (10 pairs + 1 spare)
Series of dogs to stitch a front sides with 3 small boards (10 pairs + 1 spare)
Control drum programmed to stitch a front side with 2 small boards
Control drum programmed to stitch a front side with 3 small boards
Complete slats loader group

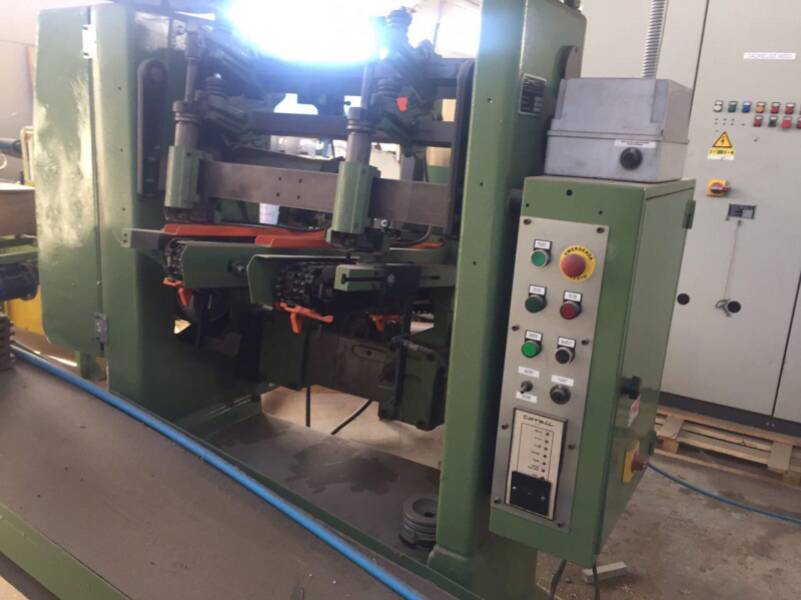

M.127 AUTOMATIC STITCHING MACHINE FOR BASES(NARROW)
(connection of bases along the sides). Automatic machine assembling bases to the sides of the frames of fruit and vegetable boxes with stitches in the corner of the bases, complete with:
2 Head/riveting groups with screw and hand wheel adjustment of width, activated by self braking motors.
The stroke of the riveting groups (pneumatically controlled) is adjusted by a mechanical stop according to the height of the corners;
2- chains conveyor with 9 pairs of dogs, 800 mm intervals, 2 convey bases and frames.
Programme drum determining the stitching points
Electrical cabinet complete with electronic equipment (PLC) for managing and controlling the machine.
Power rating 4 Kw
Air consumption 350 Nlt/minute
Dimensions of boxes:
Length of sides min. 290 mm -max. 600 mm
Widrh of box front sides min. 190 mm -max. 400 mm
Height of corners min. 60 mm -max 300 mm
M.127 AUTOMATIC STITCHING MACHINE FOR BASES(WIDE)
(Connections of bases along the box front sides)
Automatic machine assembling bases to the sides of the frames of fruit and vegetable boxes with stitches in the corner of the bases, complete with:
2 Head/riveting groups with screw and hand wheel adjustment of width, activated by self braking motors.
The stroke of the riveting groups (pneumatically controlled) is adjusted by a mechanical stop according to the height of the corners;
2- chains conveyor with 9 pairs of dogs, 800 mm intervals, 2 convey bases and frames.
Programme drum determining the stitching points
Electrical cabinet complete with electronic equipment (PLC) for managing and controlling the machine.
Power rating 4 Kw
Air consumption 350 Nlt/minute
Dimensions of boxes:
Length of sides min. 290 mm -max. 600 mm
Widrh of box front sides min. 190 mm -max. 400 mm
Height of corners min. 60 mm -max 300 mm
M.127 AUTOMATIC STITCHING MACHINE FOR BASES(NARROW)
(connection of bases along the sides). Automatic machine assembling bases to the sides of the frames of fruit and vegetable boxes with stitches in the corner of the bases, complete with:
2 Head/riveting groups with screw and hand wheel adjustment of width, activated by self braking motors.
The stroke of the riveting groups (pneumatically controlled) is adjusted by a mechanical stop according to the height of the corners;
2- chains conveyor with 9 pairs of dogs, 800 mm intervals, 2 convey bases and frames.
Programme drum determining the stitching points
Electrical cabinet complete with electronic equipment (PLC) for managing and controlling the machine.
Power rating 4 Kw
Air consumption 350 Nlt/minute
Dimensions of boxes:
Length of sides min. 290 mm - max. 600 mm
Widrh of box front sides min. 190 mm - max. 400 mm
Height of corners min. 60 mm - max 300 mm
M.127 AUTOMATIC STITCHING MACHINE FOR BASES(WIDE)
(Connections of bases along the box front sides)
Automatic machine assembling bases to the sides of the frames of fruit and vegetable boxes with stitches in the corner of the bases, complete with:
2 Head/riveting groups with screw and hand wheel adjustment of width, activated by self braking motors.
The stroke of the riveting groups (pneumatically controlled) is adjusted by a mechanical stop according to the height of the corners;
2- chains conveyor with 9 pairs of dogs, 800 mm intervals, 2 convey bases and frames.
Programme drum determining the stitching points
Electrical cabinet complete with electronic equipment (PLC) for managing and controlling the machine.
Power rating 4 Kw
Air consumption 350 Nlt/minute
Dimensions of boxes:
Length of sides min. 290 mm - max. 600 mm
Widrh of box front sides min. 190 mm - max. 400 mm
Height of corners min. 60 mm - max 300 mm
