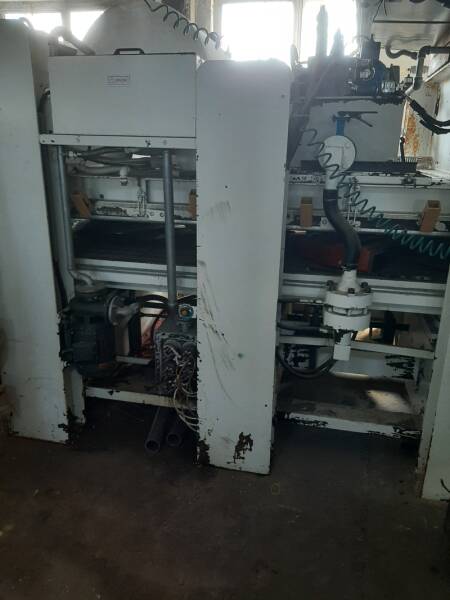

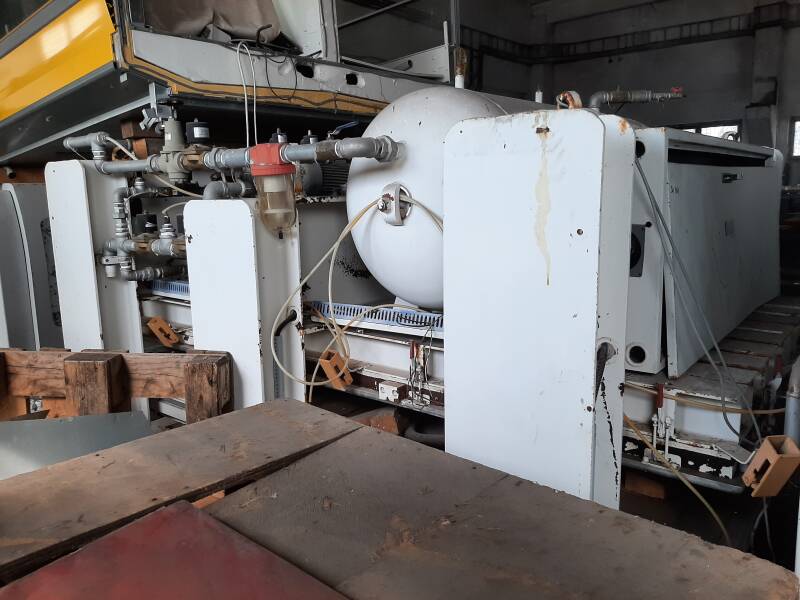

Wrapping press

OFFER PRESA TM2580with membrane for laminating kitchen tops, doors, etc

Technical specifications:
External dimensions: 6220mm×2120mm×2015mm
Work plate size: 25800mm × 1270mm (inner dimension)
Maximum height of the workpiece: 45 mm
Nominal working pressure: positive pressure ≤0.5Mpa negative pressure ≥-
0.095Mpa
General power: 40 kW
Actual power consumption: approximately 11kw
Weight: 10T

Features of the TM 2580 wrapping press
TM 2580 is a membrane press that works on the pressure principle
positive - negative pressure, being ideal for finishing 3D surfaces. Of
it is also ideal for ennobling surfaces with high gloss foils. sheet
it is heated with the help of the two plates, upper and lower, plates which
they are heated, both with the help of thermal oil and electric resistances
embedded in plates. Thanks to this system, the phenomenon of foil sweeping
high gloss is completely eliminated.
The main features of the press:
 Complete cycle of 2-5 minutes, depending on the applied material,
 Pressing time of max. 3min/pressing cycle,
 German-made vacuum pumps, BeckerLeypold,
 Possibility of pressing different thicknesses in the same pressing cycle (de
at 16 mm, at 50-60 mm),
The entire press has dimensions of 6220x2120x2015 mm. Total weight a
of the press is 6 tons. The membranes normally used are silicone and
they are 3 mm. The car39;s pistons are coated with a thick layer of hard chrome with a
subsequent finishing that ensures its resistance to wear. The hydraulic installation was
sized and checked at a pressure much higher than the working pressure.
All hydraulic installation is made with components and vacuum pumps
German BeckerLeypold. The vacuum is generated with a high capacity pump
which works in sync with the hydraulic installation, depending on the work stages.
Force hydraulic pressure and diaphragm assisted pressing are

electronically controlled by a PLC so that the membrane has efficiency
maximum.
The control panel is assisted by a PLC and a touch screen, thus monitoring
all car functions, including safety ones.
