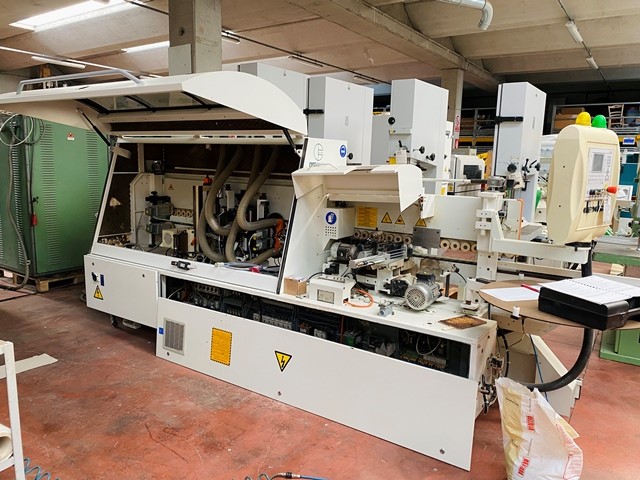

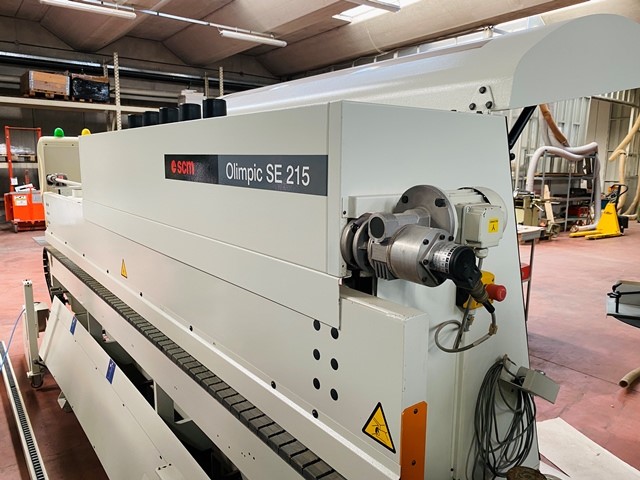

SECOND-HAND UNILATERAL EDGERBANDER SCM SCM OLIMPIC 215 SE
Edge height from 12 to 64 mm
Thickness of coiled edging from 0.4 to 3 mm
Maximum thickness of the edging in strips: 15 mm
Minimum panel length with coiled edging: 80 mm
Minimum panel length with strips: 200 mm
Minimum panel width: 60 mm
Feeding speed: 12-18 m / min
Composition:
VC 600 Gluing unit with 1+3 pressure rollers
End trimming group with 2 motors (0.35 kW - 12000 Rpm)
Edge trimming group with 2 motors (1 kW - 12000 Rpm)
Edge trimming group with 2 tiltable motors (0.5 kW - 12000 Rpm)
U-03 Universal / Routing group with 1 motor of 4 HP - 8460 Rpm
Buffing unit with 2 motors of 0.35 kW - 2700 Rpm
S/N AH/107996
CE STANDARDS (year 2003)
