Automatic milling machine

0
+ Publish a request or offer for free Save
Sell
ID: 455959
Date: 2018-05-02

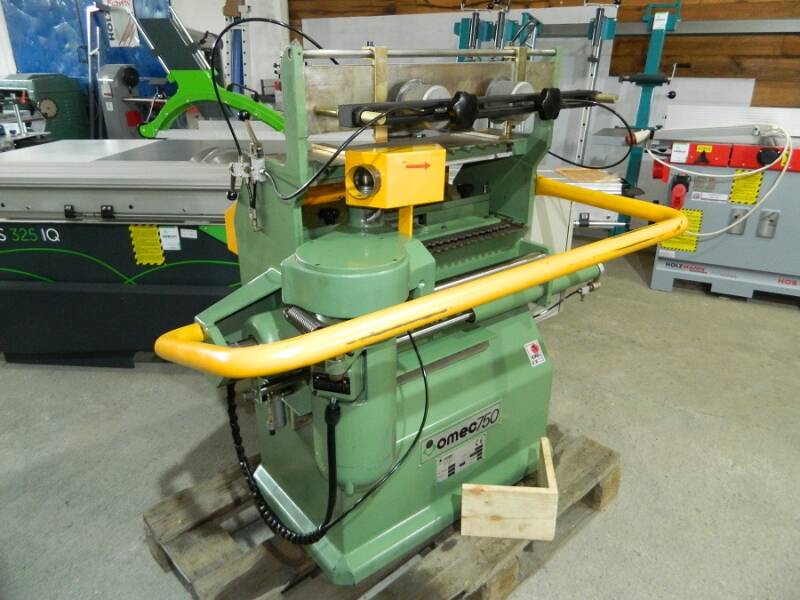

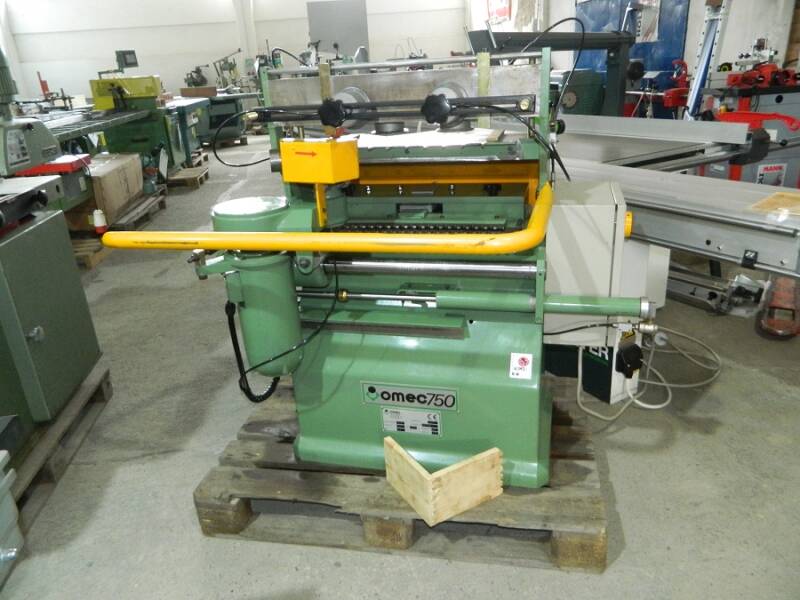

We offer you automatic milling machine, second hand.
OMEC 750 - Italy, code sh 1415

Description:
The automatic milling machine is used for milling drawers and other furniture items;
The machine is equipped with a height-adjustable cutter;
Milling on a template;
Fixing and releasing the parts is done manually by means of pneumatic pistons;
Emergency stop button;
Exhaust hood 60 mm.
Power installed: 2.2 kw
Milling motor power: 1.1 kW
Engine power: 1.1 kW
Working pressure: 6 - 8 bar
Number of fixing pistons: 4 pistons
Axis: 1 piece
Milling cutter diameter: 12 mm
Milling speed: 18500 rpm
Supply voltage: 380 V
Max working width: 640 mm
Dimensions: 1200 x 900 x 1450 mm 14 00 mm
Weight: approx. 350 kg
Condition: reconditioned
Very good working condition

Publication: 02-May-2018
Expiration: 02-09-2018
Quantity 1 kg
Country & Region Romania, Bacau
Delivery EXW
Contact seller
Sell
Date: 2018-05-02
Contact manufacturer / supplier

DANIBRUM SRL

Address : COMANESTI, BACAU, Romania
Phone: 004 0756.315.919
Fax: 004 0234.373.348
Contact: VATAVU MIHAI (Director GENERAL)

004 0756.315.919
Company profile
Commercial correspondence can be in the following languages:

Other offers / requests of the company
Sell 2018-05-18
Combined machine, circular with milling machine
Combined machine, circular with milling machine - BAUERLE - Italy, code sh 1373


Features:
Start button;
Speed in 2 reversible milling steps;
Bottom circular evacuation hood;
Height adjustment of the canvas;
Milling axle locking system;
Cast iron guide rail 755 x 115 mm;
Angle cutter.
Fixed mass dimensions L / l: 1080/1060 mm

1: Circular
Maximum canvas diameter: 350 mm
Blade diameter: 30 mm
Circular canvas speed: 4800 rpm
Main power: 7.5 kW
Cutting width to the right: 600 mm


2: Vertical cutter
Axle diameter: 30 mm
Useful shaft height: 180 mm
Max milling tool diameter: 250 mm
Engine power: 5.5 kW
Dimensions: 1300/1300/1100 mm
Weight: approx. 600 kg
Condition: reconditioned
Very good working condition
See additional details
Sell 2018-05-18
Saw, second-hand
View - Saw - STAR 700 Italy, sh 1280


Technical details:
Massive cast iron construction;
Working height 350 mm easy to adjust;
Tape width: 10 - 40 mm;
Shield for protection of the cloth;
Guide rail 600/130 mm;
90 mm lower exhaust hood;
Angled working table at angle 30-0-30 degrees;
Emergency stop button;
Working dimension L / l: 350 mm
Table size: 995/690 mm
Length of ribbon canvas: 5040 mm
Tape width: 10 - 40 mm
Engine power: 3 KW
Working speeds: 2800 rpm
Weight: 300 kg
Fifth wheel diameter: 700 mm
Dimensions: 1250 x 800 x 2200 mm
Condition: reconditioned
Very good working condition
See additional details
Sell 2018-05-18
Mechanical feed device, second hand
We provide a mechanical feed device - UNIVER ITALIA SH 1420


Description:
Ideal for mounting on woodworking machines;
Joint that allows positioning of the device in multiple positions;
Left-right operation;
Adjustable speed 3 - 24 m / min.
No rollers: 4 pcs
Roll diameter: 120 mm
Roll width: 50 mm
Advance speed: 3- 24 m / min
Engine power: 0.95 KW
Weight: 60 kg
Condition: reconditioned
Very good working condition
See additional details
Sell 2018-05-18
Cipsy-4v mechanical feed device
We supply CIPSY-4V mechanical feed device - IT SH 1366


Description:
Ideal for mounting on woodworking machines;
Joint that allows positioning of the device in multiple positions;
Left-right operation;
Adjustable speed 3 - 24 m / min.
No rollers: 3 pcs
Roll diameter: 120 mm
Roll width: 50 mm
Advance speed: 3- 23 m / min
Engine power: 0.5 KW
Weight: 50 kg
Condition: reconditioned
Very good working condition
See additional details
