Home > Demands-Offers > Machine for cutting blinds elements > ID: 455868

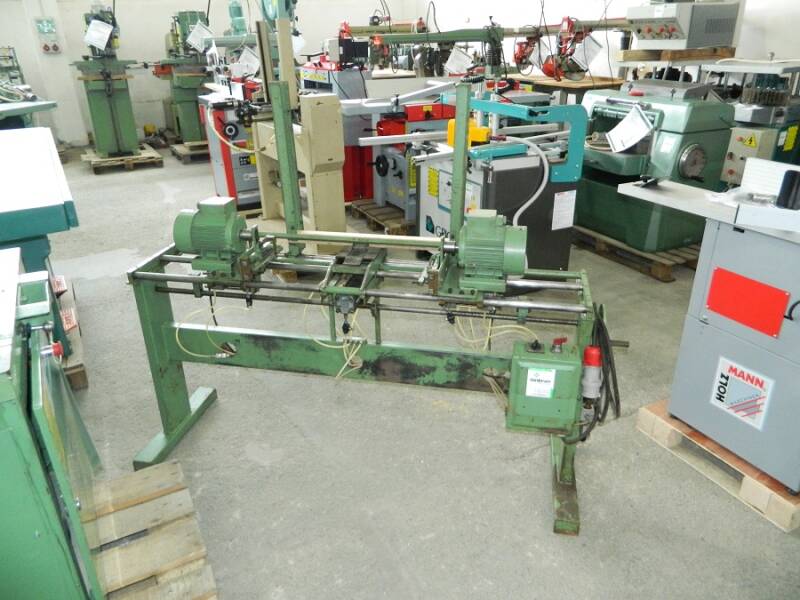

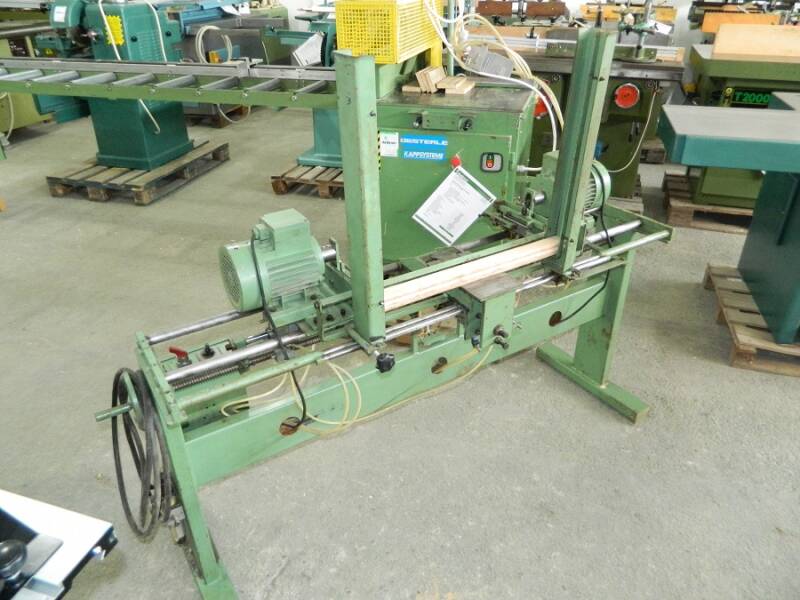

Machine for cutting blinds elements

0
+ Publish a request or offer for free Save
Sell
ID: 455868
Date: 2018-04-30

We offer the machine for cutting blinds elements.
Brand ORNO AZZIMONTI, code sh 1378

Features:

Action is done pneumatically on the button, sanfrenarea with the help of 2 electrically driven motors;
The machine is ideal for Blinds and Blinds Lambs;
Air preparation;
Adjusting the lamella length manually;
Max. lamellas: 840 mm
Min. lamellas: 220 mm
Thickness of the blades: 10 mm
Width of the blades: 75 mm
Supporting height: 550 mm
Engine power: 2 x 0.37 kW
Supply voltage: 400 V
Dimensions: 1700/600/1360 mm
Weight: approx. 170 kg
Condition: reconditioned
Very good working condition

Publication: 30-Apr-2018
Expiration: 30-Apr-2018
Quantity 1 kg
Country & Region Romania, Bacau
Delivery EXW
Contact seller
Sell
Date: 2018-04-30
Contact manufacturer / supplier

DANIBRUM SRL

Address : COMANESTI, BACAU, Romania
Phone: 004 0756.315.919
Fax: 004 0234.373.348
Contact: VATAVU MIHAI (Director GENERAL)

004 0756.315.919
Company profile
Commercial correspondence can be in the following languages:

Other offers / requests of the company
Sell 2018-05-18
Combined machine, circular with milling machine
Combined machine, circular with milling machine - BAUERLE - Italy, code sh 1373


Features:
Start button;
Speed in 2 reversible milling steps;
Bottom circular evacuation hood;
Height adjustment of the canvas;
Milling axle locking system;
Cast iron guide rail 755 x 115 mm;
Angle cutter.
Fixed mass dimensions L / l: 1080/1060 mm

1: Circular
Maximum canvas diameter: 350 mm
Blade diameter: 30 mm
Circular canvas speed: 4800 rpm
Main power: 7.5 kW
Cutting width to the right: 600 mm


2: Vertical cutter
Axle diameter: 30 mm
Useful shaft height: 180 mm
Max milling tool diameter: 250 mm
Engine power: 5.5 kW
Dimensions: 1300/1300/1100 mm
Weight: approx. 600 kg
Condition: reconditioned
Very good working condition
See additional details
Sell 2018-05-18
Saw, second-hand
View - Saw - STAR 700 Italy, sh 1280


Technical details:
Massive cast iron construction;
Working height 350 mm easy to adjust;
Tape width: 10 - 40 mm;
Shield for protection of the cloth;
Guide rail 600/130 mm;
90 mm lower exhaust hood;
Angled working table at angle 30-0-30 degrees;
Emergency stop button;
Working dimension L / l: 350 mm
Table size: 995/690 mm
Length of ribbon canvas: 5040 mm
Tape width: 10 - 40 mm
Engine power: 3 KW
Working speeds: 2800 rpm
Weight: 300 kg
Fifth wheel diameter: 700 mm
Dimensions: 1250 x 800 x 2200 mm
Condition: reconditioned
Very good working condition
See additional details
Sell 2018-05-18
Mechanical feed device, second hand
We provide a mechanical feed device - UNIVER ITALIA SH 1420


Description:
Ideal for mounting on woodworking machines;
Joint that allows positioning of the device in multiple positions;
Left-right operation;
Adjustable speed 3 - 24 m / min.
No rollers: 4 pcs
Roll diameter: 120 mm
Roll width: 50 mm
Advance speed: 3- 24 m / min
Engine power: 0.95 KW
Weight: 60 kg
Condition: reconditioned
Very good working condition
See additional details
Sell 2018-05-18
Cipsy-4v mechanical feed device
We supply CIPSY-4V mechanical feed device - IT SH 1366


Description:
Ideal for mounting on woodworking machines;
Joint that allows positioning of the device in multiple positions;
Left-right operation;
Adjustable speed 3 - 24 m / min.
No rollers: 3 pcs
Roll diameter: 120 mm
Roll width: 50 mm
Advance speed: 3- 23 m / min
Engine power: 0.5 KW
Weight: 50 kg
Condition: reconditioned
Very good working condition
See additional details
Company Products
Panel saw
max. saw blade diameter 305mm rotation speed of main blade 4500/5500U/min scoring saw blade Ø / hole 120mm/20mm rotation speed scoring saw blade 8000U/min max. cutting height 90°/45° 80/55mm saw blade tilt 0°-45° max. cutting length 3450mm max. cutting width at parallel fence 1150mm table height 850mm working table 980x550mm table extensions 500x505mm, 790x505mm sliding table 3200x375mm sliding table extensions 1110x610mm Ø dust collector inlet 100mm engine power S1 (100%) / S6 4,0kW/5,6kW engine power of scoring unit (S1/S6) 0,75kW/1,05kW voltage 400V net weight 700kg gross weight ca. 780kg machine dimensions 3350x3200mm packaging dimensions 2150x1050x980mm 3500x450x310mm
See additional details
Veb – 410
VEB – 410
See additional details
